Tilting Bratt Pan
Commercial electric bratt pan

MODEL : 402-L80

MODEL: 401-L50

Made completely of an AISI 304 steel tank with a 80 Lt capacity, the tilting pans allow
different types of cooking: it is possible to braise, brown, grill and cook directly on the
bottom of the tank. Its high thickness distributes heat evenly over the entire surface to
guarantee uniform cooking and energy saving. The water load tap on the back side of the
top and the rounded shape of the tank, that can be overtumed manually, make it easy to be
cleaned.



MODEL : 403 L120


Product Description

120L full stainless steel pan

Manually operated tilting mechanism

Optional electric power tilting mechanism

Heavy-duty lid and hinge system

Galvanized steel chassis

Stainless steel exterior

Full stainless steel pan with 2.0mm pan body

12mm thick stainless steel even heat pan base

Large capacity pouring spout

Heavy-duty spring balanced lid hinge system

Full width stainless steel lid handle

Manually operated pan lift handwheel with fold-away handle

Electrically powered pan tilting option

Single control for power and heating control

Indicator lights for power and heating

Quarter turn water valve control for ease of use

  • Automatic pilot ignition and flame failure fitted
  • 50-320˚C electric thermostatic burner control
  • Over temperature safety cut-out
  • Fold away handle on manual pan tilt
  • Pan up and down switches on electric pan tilt

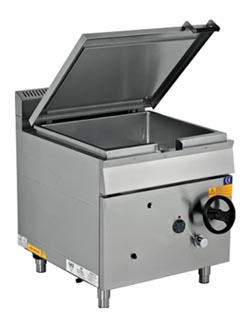

MODEL : 404- L40


Tilting Bratt Pan (Gas)
- Body, panelling and pan in AISI 304 (Cr-Ni 18/10) stainless steel
- The bottom of pan is reinforced by special stainless steel plate
- Frying in all kinds of light oil, making boiled meat, fish egg rice, stuffed food and sauce
- The tilting mechanism is manual operated
- Burner with complete magnet security valve. Which contains ignition and stop button together with pilot      -thermocouple and thermostat
- If the flame goes out, gas are cutted off
- Operable with LPG and NG gas
- If the pan is lifted up, the burner ignition gets to pilot position, so that usage safety is Provided
- Easy to fill and to wash with the water tap on top
- Hygienic, healty, lasting. Easy to use, to clean and to maintenance

Tilting Bratt Pan (Electrical)
- Body supporting frame, panelling and builtin booster heater in high quality stainless steel. AISI 304 (Cr-Ni 18/10)
- Controlled by thermostat
- The bottom of pan is reinforced by special stainless steel plate
- Frying in all kinds of light oil, making boiled meat, fish egg rice, stuffed food and sauce
- The tilting mechanism is manual operated
- If the pan is lifted up, the heating element gets to stop position, so that usage safety is provided
- Easy to fill and to wash with the water tap on top
- Opertable with electric
- Hygienic, healty, lasting. Easy to use, to clean and to maintenance
