Fire Fightning System

MODEL : F. B .G 1018.R
Compatibility with all conventional fire control panel. Alarm test key facilities. Glass protected by thin film. Wall mounted. LED blinking facility (optional). Specifications:- Specification M.C.B. ABS-I Power I/P 12 V DC Current Consumption (Normal /Fire) NA / 30MA Housing ABS Weight 150 gm. Dimensions(mm) 85 x 85 x 50 Color Red

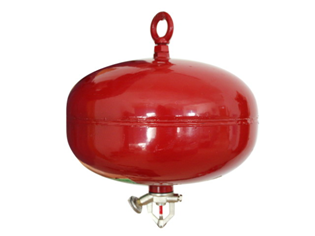

MODEL: S M 1865
Product Description: Name: 6kg Mounted Dry Power Extinguisher Sort: Hanging Dry Powder Fire Extinguisher Description: I. Main Performance Parameter A temperature-sensitive glass ball is installed on the nozzle of the spray header of mounted stored pressure dry power fire-fighting equipment, and in normal conditions, the upper end of the glass ball bears against the sealing strip on the nozzle. When there's a fire, the temperature goes up, liquid in the glass ball automatically breaks because of expansion by heat, the sealing strip automatically falls off and dry power agent in the fire-fighting equipment with nitrogen's drive sprays from the nozzle to extinguish fire. This series of fire-fighting equipments can extinguish fire quickly and can be used safely, and toxicity of the extinguishing medium is low.



Fire Extinguishing Fire Fighting System The C02, Argon, HFCs, FM200 & high pressure water mist are used in these kind of fire fighting systems, the extinguishing agent is kept in cylinders at high pressure. The fire extinguishing fire fighting system is controlled by pilot cylinder or control valve by fire control panel via heat detectors or smoke detector depending upon the nature of hazard area. The fire fighting system area calculations are done according to NFPA standards. Fire alarm & flashers are also installed in combination with extinguishing fire fighting system to evacuate the area to be protected to alert the occupants before the activation of the fire fighting system. EP Coated Steel Composite Pipe and Fittings for Fire-fighting Advantages Good insulation. Corrosion resistance. High-temperature resistance. Safety. Application For fire water supply , waste water discharge and sewage discharge etc. We are engaged in offering Fire safety Systems like fire alarm system, fire hydrant system, fire sprinkler system, portable fire extinguishers etc.


Ansul R-102 System
(1) When a fire occurs in a protected area, it is quickly sensed by detectors located in the ductwork or cooking appliance hood. (2) The detectors trigger the ANSUL AUTOMAN® release mechanism which actuates the system... pressurizing the agent storage tank and automatically shutting off appliance energy sources in the event of a fire. (3) ANSULEX LowpH liquid fire suppressant flows through the piping and is discharged into the plenum and duct areas and onto the cooking appliances. (4) The ANSULEX agent is applied directly on the fire in specific spray patterns, suppressing the fire in seconds. As it smothers the hot cooking greases, a foam blanket is formed, sealing off combustible vapors to help prevent fire reflashes.


Kitchen Fire Suppression System 1) NO CONDUIT REQUIRED By using Buckeye shielded Cable no conduit is required for system input/outputs. Buckeye shielded cable is listed for the gas value, detection line and pull station NO CONDUIT & ONLY 2) ONE ANCHOR PULLY BRACKET IN HOOD The kitchen mister system eliminates the need for conduit in the plenum and requires only one anchor bracket in the exhaust hood 3) NO CORNER PULLEYS REQUIRED Buckeye shielded cable eliminates the need for corner pulleys, making installation easy and fast. 4) COLOR-CODES NOZZLES All kitchen mister nozzles have a unique color band for easy identification 5) GAS VALUE A/C D/C SYTEM-ELECTRICAL SYSTM WORK ON 240/110V 20/12. CV BASIS 6) SENSOR ; 4 FUSEABLE 155c. LINK CAN BE U=INSTALLED IN THE HOOD. 7) OPERATION VALUE PRESSURE : 365 psi into 507 psi.
